How-to-guides for installing car security

|.

Installation help, for installing, wiring and troubleshooting car security systems.

Security

         Index









Introduction



If you are considering installing your automotive security system it's probably why you ended up here. and you came to the right place!



Our how to install guides for automotive security and remote entry systems are just one of the many titles in our extensive how-to series of installation, wiring, and tips on many subjects related to automotive aftermarket electronics..



In this How-to-guides for installing car remote entry and security, we'll cover from A to Z. From installing the main security brain to mercury switches,

our How-to-guides are quit unique as we wrote them not just for the professional installers but for the first time do-it-yourselfer.



Not only do we explain in simple easy to understand terms how to.... we also us many images and diagrams to help the newbie installer know exactly we are talking about.



So sit back and enjoy...... well actually do not sit back.

Grab your tools and let's go!











Ready to install?

First things first!



There are several thing you should do before getting started on the installation of your remote entry or security system.



Being prepared for the job will add to the gratification and performance of the install!











Airbags 101





AIR BAGS ARE NOT GOOD!



Since the incorporation of the air bag in most modern vehicles today, many lives have been saved. The air bag system when used for its purpose is a wonderful safety devise and works well.

















How does it save me?

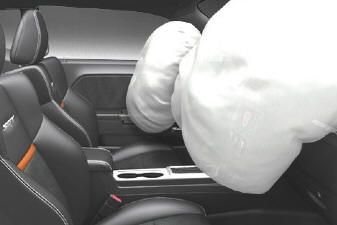

The air bag system is basically a system of electrical wire, motion sensors, and nylon bag (with some highly explosives inside. When the vehicle experiences (what the vehicle manufacture considers the proper collision force the sensors send an electrical signal the air bag assembly then a highly explosive charge is ignited to deploy the air bag.

















Look for the color yellow!





Your objective when instilling your remote entry or security system, or anything else on your vehicle is to stay away from this system.



Do not be alarmed as, most vehicle manufactures usually make it quite clear anything related to the air bag.

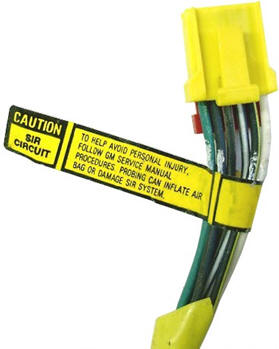

The best rule of thumb is to always look for the bright yellow color from the plugs to the fuses that protect the air bag circuit.





They will typically have some form of bright yellow incorporated into it's design.















So...what do I not do?



However, when working on your vehicle, you should take great care not to tamper with

If your vehicle is equipped with an airbag safety system, you should consider the following when installing your remote entry or security system:

  • Avoid disconnecting the vehicles battery if possible.

  • Avoid using test light especially one using an incandescent light bulb, as they may draw a mush higher current than expectable by the air bag circuit.

  • PROBING THE WRONG WIRE CAN DEPLOY OR DAMAGE THE AIR BAG SYSTEM!





About data bus or (multiplexing)

Most newer vehicles will use a low voltage or data bus (also known as "multiplexing) system that control many functions of the vehicle. The brain or control module for this system can be damaged if you probe or "tap" into wrong wires.









  • Us a V.O.M. meter to measure any voltage

  • Most vehicles will have a bright yellow plastic jacket around all wire pertaining to the airbag, if so stay as far away from those wires as possible

  • Never probe wires you are unsure of, especially near any air bag location and around the steering column.



















What not to do

  • Avoid using test light especially one using an incandescent light bulb, as they may draw a mush higher current than expectable by the B.C.M (body control Modula). circuit.

  • Us a V.I.N. meter to measure any voltage

  • Never probe wires you are unsure of.

For more detail on Data bus systems see: Data bus collage.

















What tools will I need to do the job?





Using the proper tool for the job will make the your security or remote entry system, functions properly and add to the gratification of a job well done!  To learn more about the tools for the job visit Tool university.









Continue to:

Introduction part-2
