Series- Parallel



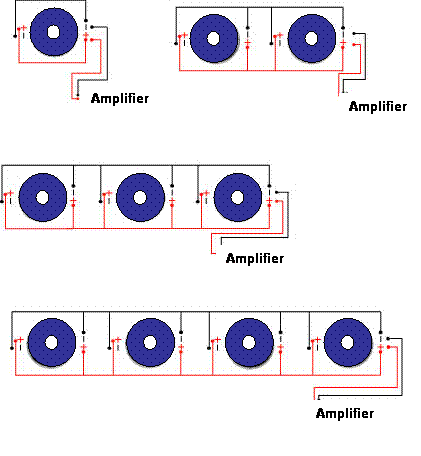

• Wiring diagram for Series-Parallel wiring is for dual voice coil subs.

• This means the voice coils on each individual sub are wired in series, the subs are wired together in parallel.





1. To calculate impedance for Series-Parallel wiring, enter the impedance of each voice coil, the number of subs you are wiring, and then hit calculate.

2. The resulting ohm load you will see will be displayed under actual mono load.
