Amplifier power distribution diagrams
Amplifier audio input diagrams
|
|
|
Amplifier
wiring
These
amplifier wiring guides will cover most amplifiers on
the market today.
Be sure to
follow the manufactures recommended wire gauge for each
specific component, battery, speakers, etc..
|
|

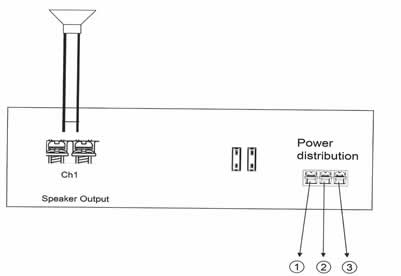

Side view of
speaker and power distribution
Terminal view
may vary from model to model |
Terminal
1-2 or 3
may indicate
|
|
If you're amplifier uses a wire instead
of a terminal screw for power distribution wire will be with
red |
This terminal
will go directly to the vehicles positive side of the battery
Make sure this
wire is fuse protected!
|
Terminal
1-2 or 3 may indicate
|
-
(-)
-
Ground
-
Gnd
-
negative
-
neg
|
If you're amplifier uses a wire instead
of a terminal screw for power distribution wire will be black
|
This
terminal should be connected to a good negative chassis ground. |
Terminal
1-2 or 3 may indicate
|
-
Remote
-
Remote turn on
-
Amp turn on
|
If you're amplifier uses a wire instead
of a terminal screw for power distribution:
it will be a small blue or
orange wire |
This terminal should be
connected to the power antenna wire coming out of your radio. If
your radio does have a power antenna wire, it will be blue. If a remote wire is not
available. You may use the vehicles accessory wire, which will be at
the radio and will activate the amplifier each
time the ignition is turned on. |
|
|
 |
2 Channel
|
|
|
|
 |

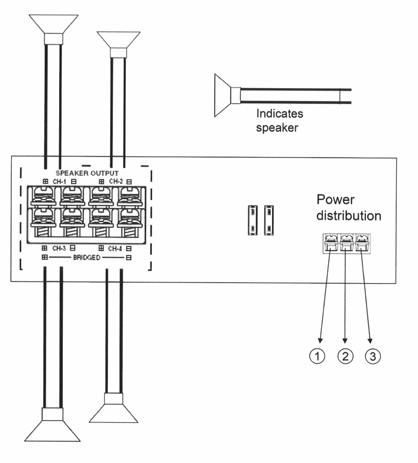

4 Channel
|
|
|
 |

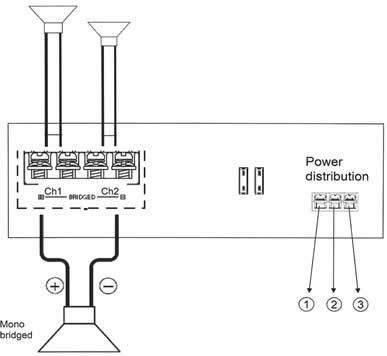

Mono |
|
|
